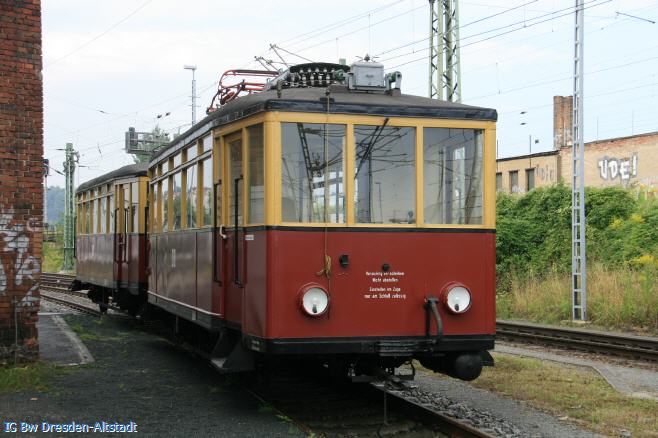

ET 188 511

Year of manufacture 1930
Manufacturer Linke-Hofmann-Busch Weimar
Electrical equipment Siemens und Schuckert Werke
Wheel arrangement Bo
Genus B
Owner Dresden Traffic Museum (VMD)
Museum's vehicle since 199x
Accessibility not always

Technical Data

Length over buffers (mm) 11 200
Complete wheelbase (mm) 5 500
Diameter of driving wheel (mm) 850
Height over rail (mm)
Operating weight (including all supplies) (t) 18,6
Maximum speed (km/h) 45
Power (horse powers) 120
Brake type
Axle load (t) 9,3
Maximum tractive effort on starting (Mp)
Power system (V) 1 200 =
Engine type   D x 721b SSW
Type of drive   Tatzlagermotor
Seats / Standing places   32 / 44
Track gauge (mm) 1 435
