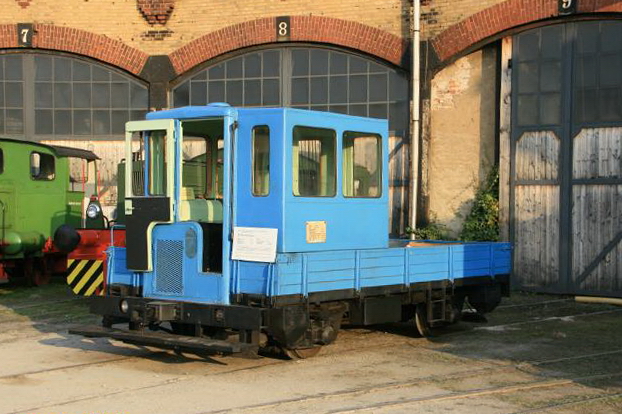

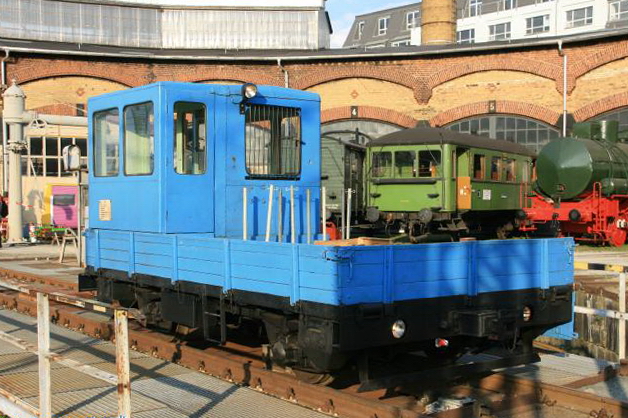

SKL 3206
(Heavy Small Vehicle)

Year of manufacture 1959
Manufacturer Raw Schöneweide
Manufacturing number 35113/b76
Wheel arrangement B
Genus SKL Sw
Owner Dresden Traffic Museum (VMD)
Museum's vehicle since 1995
Accessibility not always

Technical Data

Length over buffers (mm) 5 550
Complete wheelbase (mm) 2 500
Diameter of driving wheel (mm)
Height over rail (mm) 2 710
Operating weight (including all supplies) (t) 5,8
Maximum speed (km/h) 45
Power (horse powers) 41
Axle load (t) 2,9
Maximum tractive effort on starting (Mp)
Engine type   4 NVD 12,5 SRL
Track gauge (mm) 1 435
